Center speaker

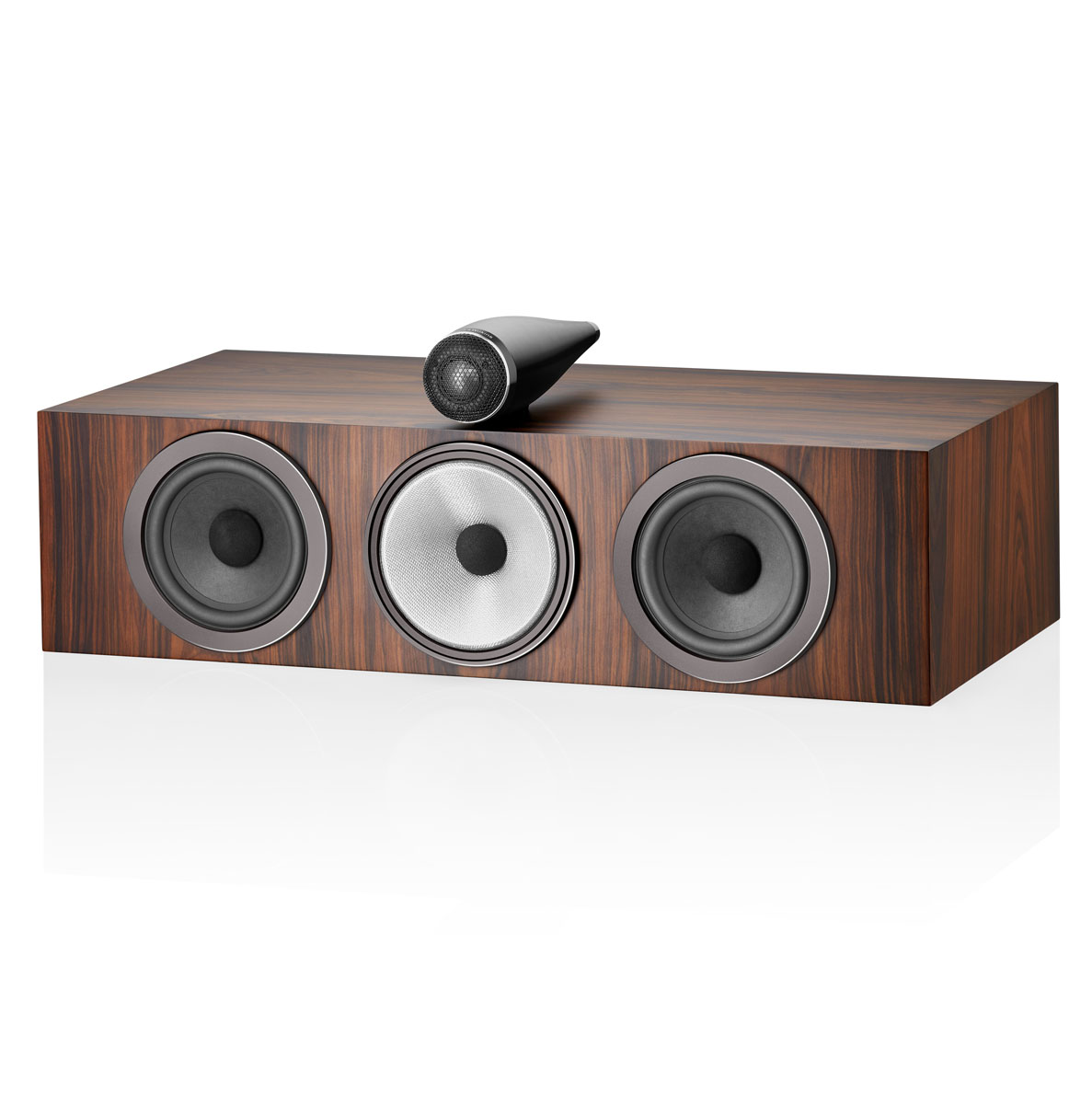

The HTM71 S3 Signature is a first-of-its-kind 700 Series Signature centre channel speaker, bringing even more clarity and detail to your favourite movies and music.
HTM71 S3 Signature features optimised technologies, such as our proprietary decoupled Continuum midrange drive unit and Tweeter-on-Top, plus upgraded bass motor systems, improved capacitors, revised speaker terminals, and a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
- Description: 3-way vented-box system
- Drive units: 1x ø25 mm (1") Decoupled Carbon Dome high-frequency, 1x ø130 mm (5") Continuum cone FST midrange, 2x ø130 mm (5") Aerofoil Profile bass
- Frequency range: -6 dB 45 Hz - 33 kHz
- Frequency response: 50 Hz - 28 kHz ±3 dB
- Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 m on axis), <1% 90 Hz - 22 kHz, <0.5% 120 Hz - 20 kHz
- Nominal impedance: 8 Ω (minimum 3.1 Ω)
- Recommended amplifier power: 30 W - 200 W into 8 Ω on unclipped programme
- Sensitivity: 89 dB spl (2.83 Vrms, 1 m)
- Max recommended cable impedance: 0.1 Ω
- Technical features: Decoupled Carbon Dome tweeter, Solid Body Tweeter-on-Top, Continuum™ cone FST™ midrange, Aerofoil™ Profile bass cones, Flowport™
- product dimensions: 628 x 233 x 356 mm
- net weight: 19.90 kg
- minimum quantity: 1 pcs
